QuickColor® GT Cube

QuickColor® GT Cube

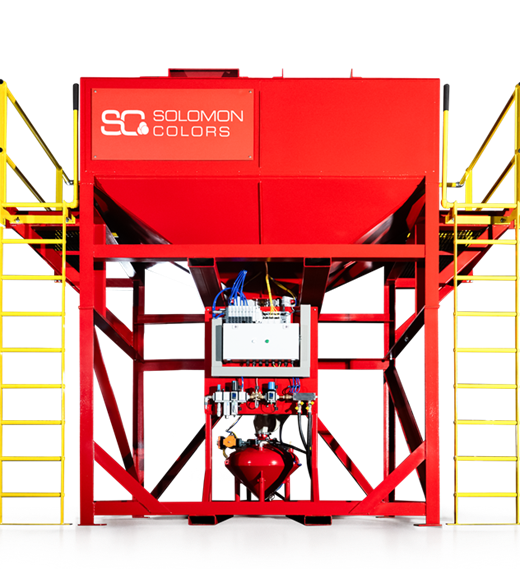

Transform your concrete coloring process with Solomon Colors' QuickColor® GT Cube. Designed for facilities where space matters, this compact, self-contained ColorFlo® Granular pigment dispenser delivers next-generation precision for concrete products manufacturers, boosting efficiency and quality.

Download PDF

Looking for a custom-built solution for high volume operations? Check out the GT-1.

System

Front-loading 4-color system
Capable of serving multiple mixers
Use with up to 4 cyclones or direct inject into concrete mixers

Dense-phase pneumatic conveying
Advanced diagnostics and easy scalability
Optional Short Rack* for low ceiling installations (reduces height ~1 ft)

Features & Benefits

Seamless integration to popular concrete batching plants
State-of-the-art Siemens PLC control system with HMI and remote access capabilities

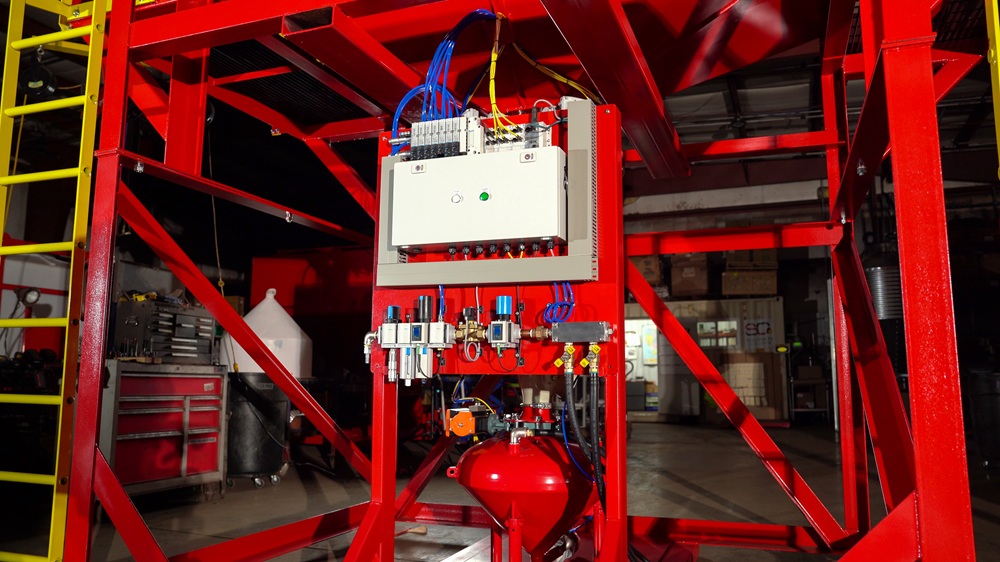

Ethernet-based pneumatic control panel and cyclone service panel
Electronic-assisted control valves for accurate dispensing
Advanced diagnostics, record keeping, and reporting
Easier scalability when adding multiple cyclones
Full GT-1 control features in a smaller footprint

Specifications

Number of colors: 4 (2500 lb super sacks)
Cyclones: Up to 4
Scale capacity: 80lbs / 35kg stainless steel hopper
Load cell operating tolerance: = +/- 0.05lbs / 20 grams
Maximum load capacity: 80lbs / 35kg

Footprint

11’–11.25” H (without rack)
17’–9.5” H (with rack)
13’–6.7” W
7’–7.75” D

System Requirements

Electric: 120 Volt 1-phase power (15 FLA)
Air Supply
- Main cabinet
  - 1" to 3/4" airline @ 80 psi (50 cfm)
  - The air must be dry (refrigerated dry is preferred).
- Cyclone cabinets
  - 1/2" to 3/8" airline @ 80 psi (25 cfm)
  - The air must be dry (refrigerated dry is preferred).
