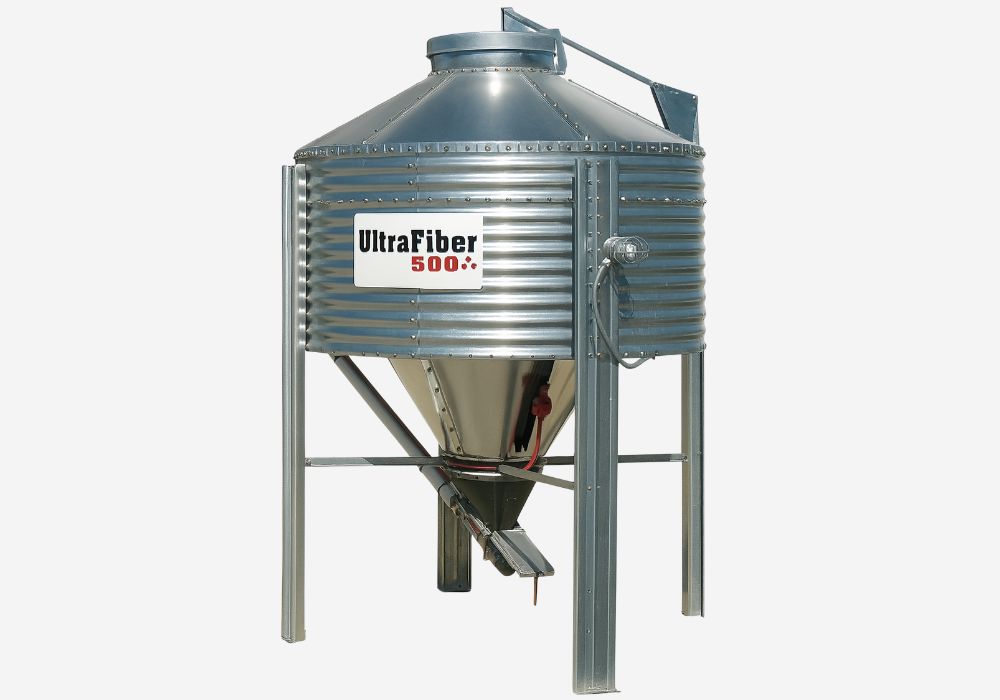

UltraFiber 500® Automated Gen1 Dispenser

The UltraFiber 500® Automated Gen1 Dispenser is our simple and highly successful original design for streamlining fiber dosing. Ready Mix plants across North America trust it to deliver a consistent, pre-programmed amount of UltraFiber 500® into each batch. The result: less labor, a cleaner plant, and more consistent concrete.

Download Cut Sheet (PDF)

As the only fiber that readily absorbs decorative colors for concrete and results in a smooth clean finish, UltraFiber 500® is the natural choice for architectural and decorative concrete.

System

Top loading
1000 lb capacity
Meets all legal requirements for CE Marking
Add fiber directly into batch

Accurate dosage with batch tickets
Ties into batching system
Low level bin indication
Camera at discharge point

Specifications & Footprint

1000 lb. capacity
Feed rate: Approx 15 lbs./min
Standard auger length: 70'
Max auger angle: 60 degrees
Height: 115"
Length/width: 52" x 52"

Requirements

Base: 12' x 12' concrete pad for stability
Electricity: 110 V, 15 AMP
Compressed air
Electrician, man-lift, and welder at installation (provided by customer)

Solomon Advantage

Built in the USA by Solomon Colors
Backed by nationwide service technicians
Support available during business hours and after hours

Gen2 Dispenser

Want even more efficiency and enclosure? See how the updated system improves fiber dosing with front loading and a fully enclosed powder coated steel cabinet.

Explore Gen2
